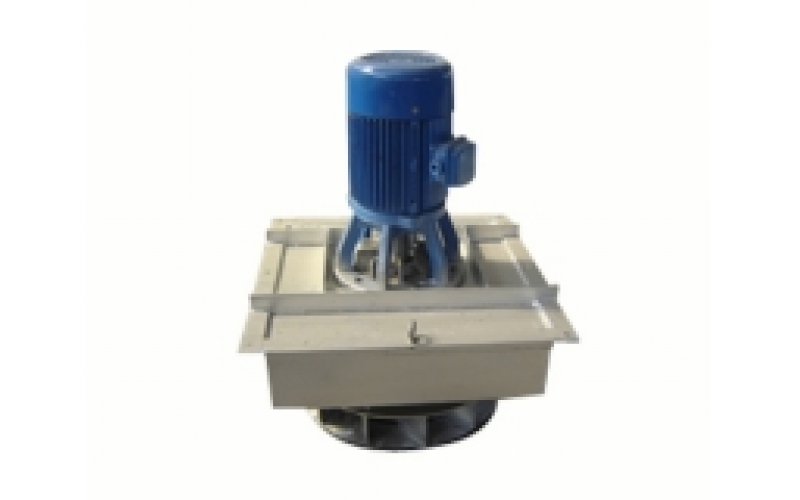

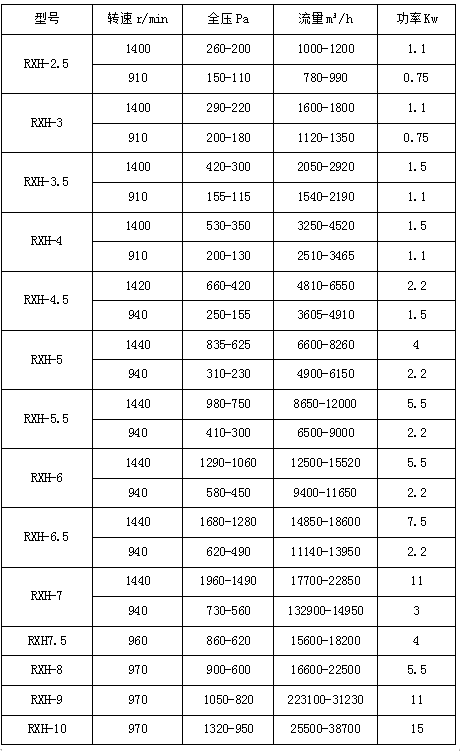

RXH型系列热风循环风机性能参数表
型号 | 转速r/min | 全压Pa | 流量m³/h | 功率Kw |
RXH-2.5 | 1400 | 260-200 | 1000-1200 | 1.1 |
910 | 150-110 | 780-990 | 0.75 | |
RXH-3 | 1400 | 290-220 | 1600-1800 | 1.1 |
910 | 200-180 | 1120-1350 | 0.75 | |
RXH-3.5 | 1400 | 420-300 | 2050-2920 | 1.5 |
910 | 155-115 | 1540-2190 | 1.1 | |
RXH-4 | 1400 | 530-350 | 3250-4520 | 1.5 |
910 | 200-130 | 2510-3465 | 1.1 | |
RXH-4.5 | 1420 | 660-420 | 4810-6550 | 2.2 |
940 | 250-155 | 3605-4910 | 1.5 | |
RXH-5 | 1440 | 835-625 | 6600-8260 | 4 |
940 | 310-230 | 4900-6150 | 2.2 | |
RXH-5.5 | 1440 | 980-750 | 8650-12000 | 5.5 |
940 | 410-300 | 6500-9000 | 2.2 | |
RXH-6 | 1440 | 1290-1060 | 12500-15520 | 5.5 |
940 | 580-450 | 9400-11650 | 2.2 | |
RXH-6.5 | 1440 | 1680-1280 | 14850-18600 | 7.5 |
940 | 620-490 | 11140-13950 | 2.2 | |
RXH-7 | 1440 | 1960-1490 | 17700-22850 | 11 |
940 | 730-560 | 132900-14950 | 3 | |
RXH7.5 | 960 | 860-620 | 15600-18200 | 4 |
RXH-8 | 970 | 900-600 | 16600-22500 | 5.5 |
RXH-9 | 970 | 1050-820 | 223100-31230 | 11 |
RXH-10 | 970 | 1320-950 | 25500-38700 | 15 |
